American DJ Focus Wash 400

Bestellnr.
195076

Moving-Wash

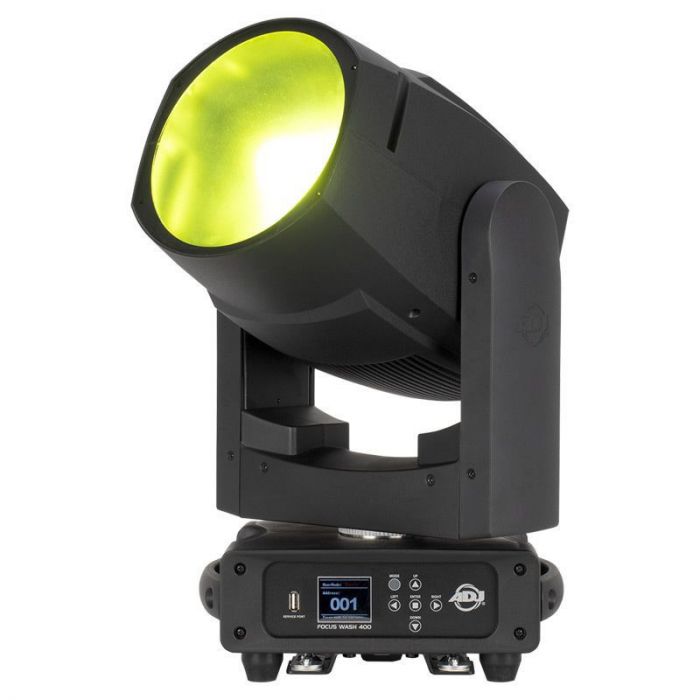

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 10 to 41 degree motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 10000K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

The fixture comes standard with IP65 locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

Source:

• Source: 400W RGBACL LED Engine

• 4600 Lumen

• Average lifetime: approximately 50,000 hrs



Optics:

• Zoom range: 10 - 41 degrees

• Field Angle: 19 - 54 degrees

• Fresnel Lens

• Motorized Zoom



Control:

• DMX-512 Protocol

• 5 DMX Channel Modes (Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24))

• RDM compatible (Remote Device management)

• 16bit dimming 0-100%

• 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve

• Various strobe effects

• LCD Menu Display with 6-button Control

• 3 Fan settings : Auto, High and Low Noise



Colors:

• RGBACL Color Mixing (Red, Green, Blue, Amber, Cyan, Lime)

• CRI: 94

• Preset Color Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)



Construction:

• Metal casting with ABS housing



Electrical:

• Multivoltage : 100-240V 50/60Hz

• Power Draw : 438W



Connections:

• Locking 3- & 5-pin DMX In/Out

• IP65 Locking Power In/Out



Dimensions & Weight:

• Dimensions: 213 x 278 x 568mm

• Weight: 10,7 kg.


Included accessories:

• Snoot

• 1x40 Degree Linear Lens

• 2 Omega Brackets

• Safety Cable



• IP65 Locking Power Cable
