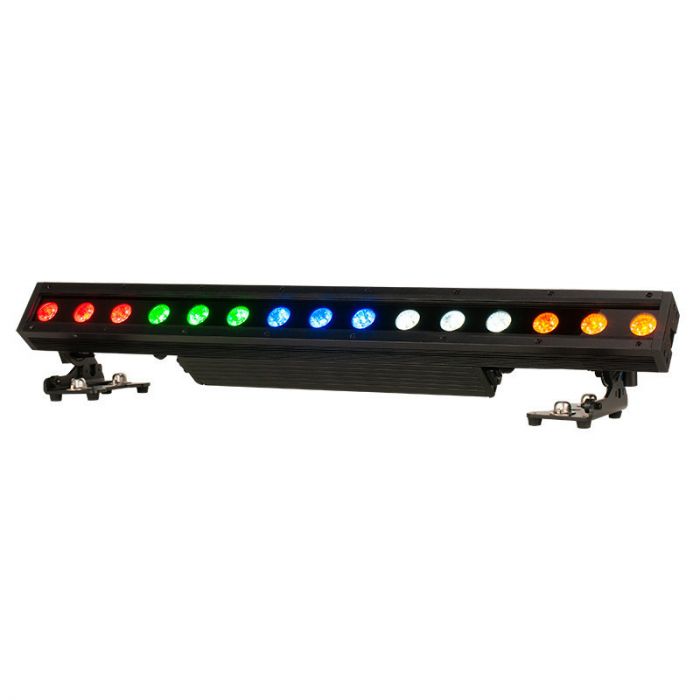

American DJ 15 Hex Bar LED

Source

• Light Source: 15 RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED)

• Individual LED wattage : 12W

• Average LED lifetime :approximately 50,000 hrs.


Optics

• Beam Angle: 25 degrees

• LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)

• Removable Frost/Diffuser Filter

• Removable Glare shield


Control

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Color Macro Mode and

DMX Control

• 10 DMX Modes: 6, 9, 12, 14, 17, 30, 33, 38, 41 & 60-channel

• RDM compatible (Remote Device Management)

• 16bit Electronic Dimming: 0 - 100%

• 63 built-in Color Macros

• 13 Built-in programs with speed and fade time adjustments

• 5 individually controlled sections with Zone Control

• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 20 Dimmer Delay Time settings : 0.1sec - 10secs

• Gamma control : Manual Gamma setting 2.0 / 2.2 / 2.4 / 2.6 or 2.8

• LED Refresh Rate control : Manual LED refresh rate setting : 900Hz-25khz

• LED pulse and strobe effect

• 4-button, DMX digital display on rear panel


Colors

• RGBAW+UV Color Mixing


Construction

• Metal Housing

• IP Rating : IP65

• Convection cooling

• Sure-lock heavy-duty locking bracket system (securely locks every 10-degrees)

• Two Omega Quicklock Brackets included


Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 130 W

• Daisy chain: 6 units (120V); 15 units (240V)

• Operating Temperature: from -15°C to +45°C


Connections

• 5-pin Locking IP65 DMX connectors

• IP65 Locking Power In/Out connections


Dimensions & Weight

• Dimensions (LxWxH):915 x 158 x 167mm

• Weight: 9 kg.
