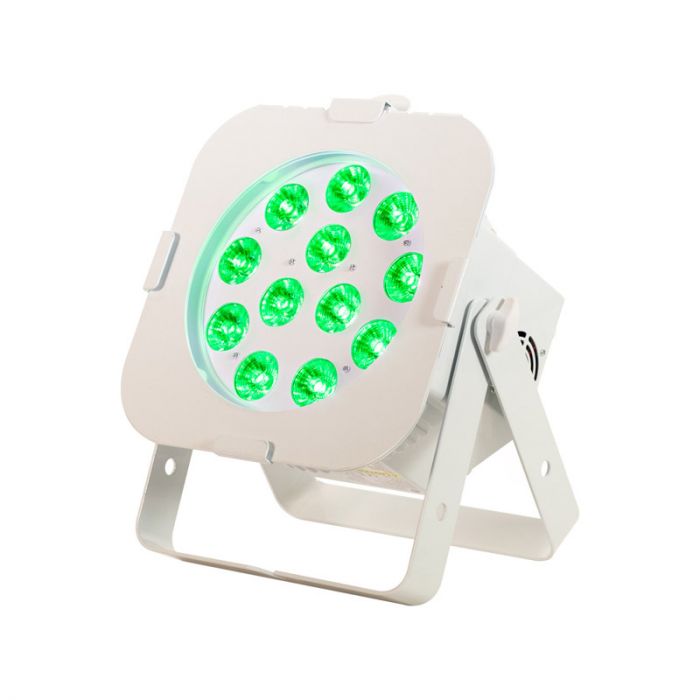

American DJ 12PX HEX Pearl

Source

• Light Source: 12 RGBWA+UV LEDs (Red, Green, Blue, White, Amber & UV LED)

• Individual LED wattage : 12W

• Average LED lifetime :approximately 50,000 hrs.


Optics

• Beam Angle: 25 degrees

• Gel frame for diffusion filters included (optional diffusion filters)


Control

• 5 Operational modes: Static Color Mode, RGBWA+UV Dimmer Mode, Program Mode, Sound Active Mode and

DMX Control

• 4 DMX Modes: 6, 7, 8 & 12-channel

• Electronic Dimming: 0 - 100%

• 63 built-in Color Macros

• 7 built-in Programs, Sound Active Mode

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)

• Optional Dotz PAR RF Remote available (order code 1223200035)

• LED pulse and strobe effect

• 4-button, DMX digital display on rear panel


Colors

• RGBWA+UV Color Mixing


Construction

• White Metal Housing

• Fan cooling

• Scissor yoke


Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 133W


Connections

• Sideways 3- & 5-pin Locking DMX connectors

• Sideways Locking Power In/Out connections


Dimensions & Weight

• Dimensions (LxWxH): 135.8 x 249 x 297.4mm

• Weight: 4 kg
