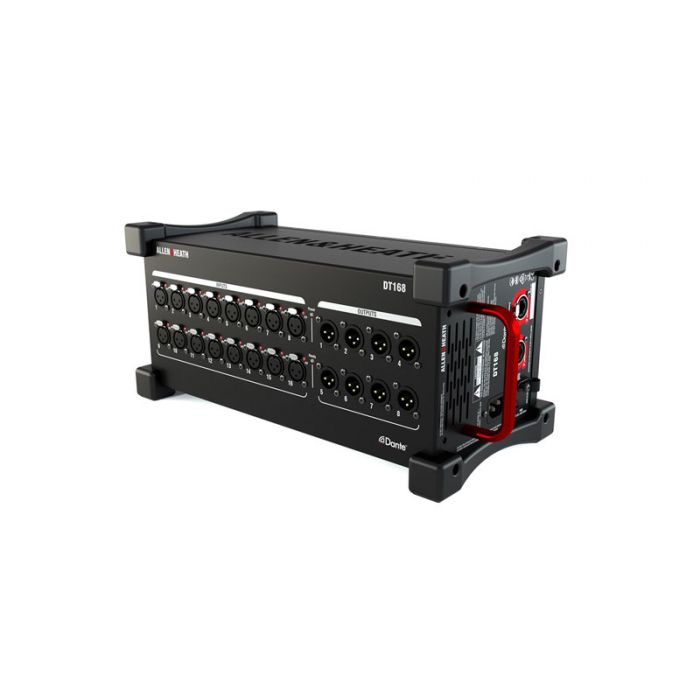

Allen & Heath DT168

Verfügbarkeit unbekannt

Bestellnr.
183222

16 XLR Input / 8 XLR Output – 96kHz Dante Expander

The DT168 provides 16 microphone preamps and 8 line outputs in a convenient stagebox form factor. Ideal for portable applications thanks to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any SQ or dLive Dante network.

DT168 offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.

Up to 16 units can be added to an SQ or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.


Features:



Dante audio expander, 96kHz / 48kHz
Portable stagebox design
16 mic preamps on XLR with Phantom Power status LEDs
8 XLR Line Outs
Primary and Secondary Dante ports with locking EtherCon
Redundant or Switched mode
Direct preamp control from dLive and SQ
Optional 19-inch rack mount kit available
Rubber bumpers and carry handle
AES67 compatible
Dante Domain Manager ready

Mehr Informationen
Marke Allen & Heath
