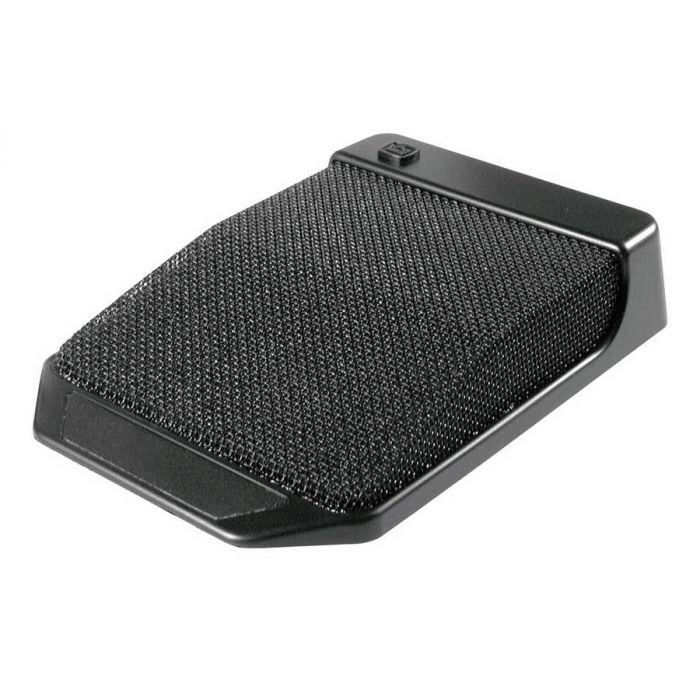

AKG PCC170

Grenzflächenmikrofon mit Supernieren-Charakteristik, 12 - 48 Volt Phantomspeisung, 5 m Kabel Mini-XLR sowie einem Frequenzbereich von 50 - 18.000 Hz

Neben dem Einsatz als Tischmikrofon in Konferenzräumen wird dieses Mikrofon auch auf Bühnen installiert.

Zum Lieferumfang gehört ein Anschlußkabel mit XLR-Stecker. Das PCC- 170 ist in schwarz oder weiß erhältlich.

Technische Daten

* Frequenzgang: 50 Hz bis 18 kHz
* Richtcharakteristik: halbe Superniere
* Nennimpedanz: 150 Ohm, symmetrisch
* Empfindlichkeit: 22 mV/Pa. (-33 dB bez. 1 V/PA.)
* Grenzschalldruckpegel: 120 dB SPL
* Betriebsspannung: 18 V bis 48 V Phantomspannung
* Gewicht: 170 g

The CROWN PCC®-170 is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the CROWN PCC®-170 minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.

The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. RFI suppression is included. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.

* Supercardioid polar pattern offers high-gain-before-feedback
* Phase coherent cardioid® design prevents coloration from surface sound reflections
* Wide and smooth frequency response
* Three-position bass-tilt switch
* Small and inconspicuous

Specifications

Polar pattern supercardioid
Frequency range 50 to 20,000 Hz
Sensitivity 22 mV/Pa (-30 dBV)
Max. SPL 120 dB
Equivalent noise level 22 dB-A
Signal/noise ratio 72 dB (A-weighted)
Impedance 150 ohms
Power requirement 12 to 48 V phantom power to DIN/IEC
Connector Switchcraft TB3M
Cable 170 g (6 oz.)
Finish black
Dimensions 8.6 x 12.3 x 2.3 cm (3.4 x 4.84 x 0.9 in.)
Net weight 170 g (6 oz.)
