AKG PCC130 SW

Grenzflächenmikrofon mit Nieren-Charakteristik, dreistufigem Bass-Cut Filter sowie programmierbarem, geräuschlosem Schalter

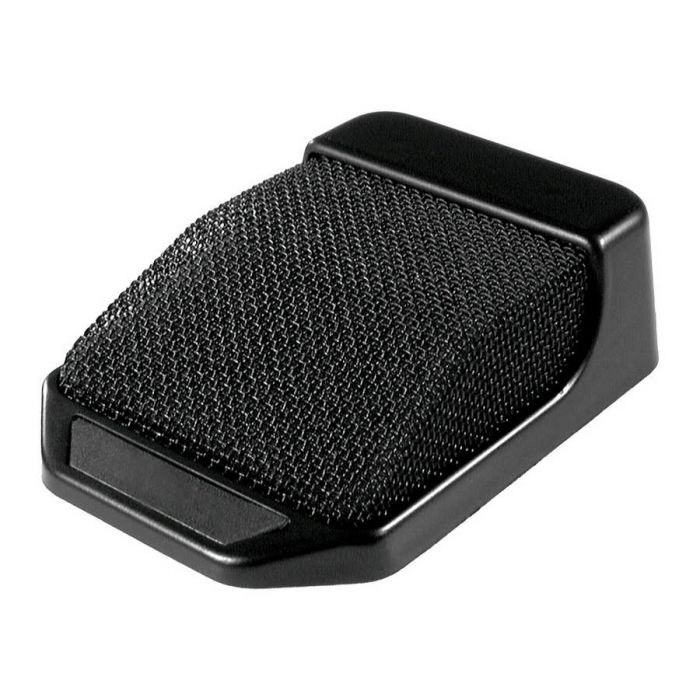

The CROWN PCC®-130 and the CROWN PCC®-130SW are surface- mounted small cardioid microphones of professional quality. With its small size, the CROWN PCC®-130 is less conspicuous on a conference table than comparable mics. Because of its highly directional pickup pattern, the CROWN PCC®-130 minimizes background noise and feedback.

The CROWN PCC®-130SW has a silent-operating membrane switch which is normally off. The switch can be configured for touch on/off, momentary on or momentary off. A high-intensity LED lights when the unit is on. The CROWN PCC®-130SW is intended for multiple-microphone use on a conference table where each person wants control of his or her microphone. The microphone attenuates 70 dB when the switch is in the off position.

Specifications

Polar pattern PCC®-130: cardioid; PCC®-130SW: supercardioid
Frequency range 50 to 20,000 Hz
Sensitivity 22 mV/Pa (-30 dBV)
Max. SPL 120 dB
Equivalent noise level 22 dB-A
Signal/noise ratio 72 dB (A-weighted)
Impedance 150 ohms
Power requirement 12 to 48 V phantom power to DIN/IEC
Connector Switchcraft TB3M
Cable 269 g (9.5 oz.) incl. cable
Finish satin black
Dimensions 6.4 x 8.9 x 2.5 cm (2.5 x 3.49 x 0.988 in.)
Net weight 269 g (9.5 oz.) incl. cable
